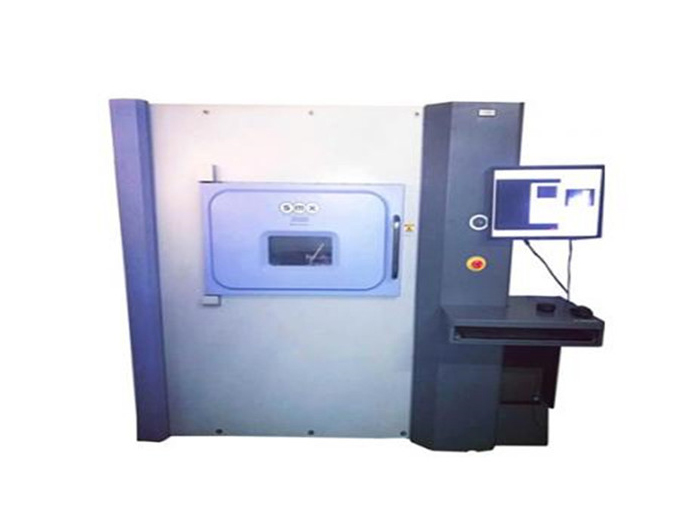

Shimadzu SMX-2000 adopts a high-speed stage, is equipped with the function of determining the position by appearance image, and can complete all necessary settings with one click of the mouse. It can move the sample and change the observation angle more quickly to achieve fluoroscopy. Moreover, the software used in this system (XEVOLUTION) will upgrade the stepping and teaching functions used on the SMX-1000, and can add the setting measurement function, so that users can set the inspection steps according to their own needs. The tube ball used in this equipment is designed without high-voltage cable, and can be used with the flat detector to obtain a high-resolution image without deformation and shadow. The new SMX-2000 is especially suitable for inspection of BGA solder ball defects, observation of wire keys and status, etc.
Shimadzu SMX-2000 adopts a high-speed stage, is equipped with the function of determining the position by appearance image, and can complete all necessary settings with one click of the mouse. It can move the sample and change the observation angle more quickly to achieve fluoroscopy. Moreover, the software used in this system (XEVOLUTION) will upgrade the stepping and teaching functions used on the SMX-1000, and can add the setting measurement function, so that users can set the inspection steps according to their own needs. The tube ball used in this equipment is designed without high-voltage cable, and can be used with the flat detector to obtain a high-resolution image without deformation and shadow. The new SMX-2000 is especially suitable for inspection of BGA solder ball defects, observation of wire keys and status, etc.
Purpose
Inspection of real installed base plate and electronic parts
Features
·Easily lock the viewing position
·Inspection steps can be set arbitrarily
·Undeformed image
·Powerful and easy to operate software XEVOLUTION
Powerful and easy to operate software XEVOLUTION
Specifications
|
spatial resolution |
one μ M (JIMA standard sample) |
|
Carrying size |
470 wide × Depth 420 × 100mm high |
|
Check stroke |
X：460mm； Y：410mm； Z: 100mm (rotation: ± 180 °, inclination: 70 °) |
|
Carrying mass |
5kg |
|
X-ray output |
Pipe voltage 160kV; Tube current 200 μ A； Rated power: 21W |
|
Detector |
Digital flat panel detector |
|
Display magnification |
8700 (calculated value); 5500 (when using our standard sample) |
|
Power Supply |
Single phase AC200V ± 10%; 2kVA (Type D grounding) |
