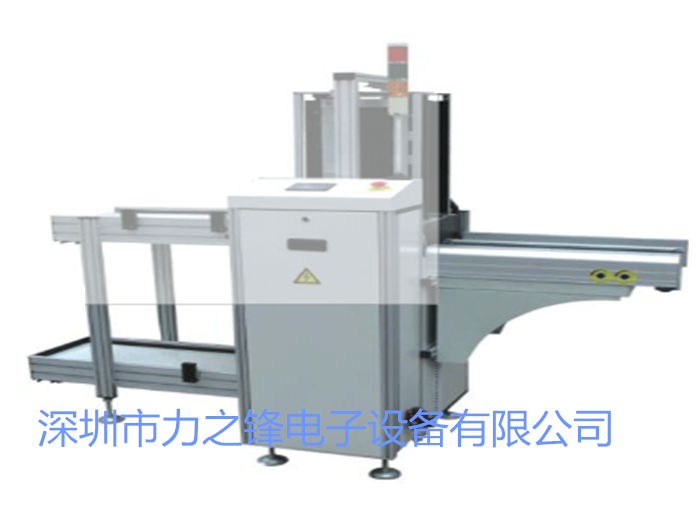

LTCL250 收板機：
| LTCL-250收板機 |
| 1)外型尺寸:L1700*W780*H1200±30mmmm |
| 2)專用鋁型材導軌及專用千鳥型塑膠鏈條 |
| 3)90W臺產剎車馬達驅動采用滾珠絲桿使Magazine步進升降 |
| 4)氣動夾件結構. |
| 5)附帶0.7M長的推板Conveyor一套 |
| 6)Magazine規格為L(zhǎng)355*W320*565mm |
| 7)PCB最大規格為L(zhǎng)330*W250 |
| 8)方向: 左至右/右至左 |
| 9)升降平臺節距選擇為10，20，30，40 |
| 10)信捷PLC 可編程控制器控制. |
| 11)具有自動收板功能 |
| 12)操作控制面板為顯控真彩觸摸屏 |
| 13)電源：220V 50HZ； |
| 14)氣源：0.4-0.6MPa |
| 15)滿載儲板數量：50PCS |
| 16)電控箱一套 |
| LTCL-250 plate collector |
| 1) Overall dimension: L1700 * W780 * H1200± 30mmmm |
| 2) Special aluminum profile guide rail and special Qianniao plastic chain |
| 3) 90W production brake motor is driven by ball screw to lift Magazine step by step |
| 4) Pneumatic clamp structure |
| 5) A set of 0.7m long push plate CONVEYOR is attached |
| 6) The specification of Magazine is L355 * W320 * 565mm |
| 7) The maximum specification of PCB is L330 * W250 |
| 8) Direction: left to right/right to left |
| 9) The lifting platform pitch is selected as 10, 20, 30, 40 |
| 10) Xinjie PLC programmable controller control |
| 11) With automatic board retraction function |
| 12) The operation control panel is a display control true color touch screen |
| 13) Power supply: 220V 50HZ; |
| 14) Air source: 0.4-0.6MPa |
| 15) Number of fully loaded storage plates: 50PCS |
| 16) One set of electric cabinet |
